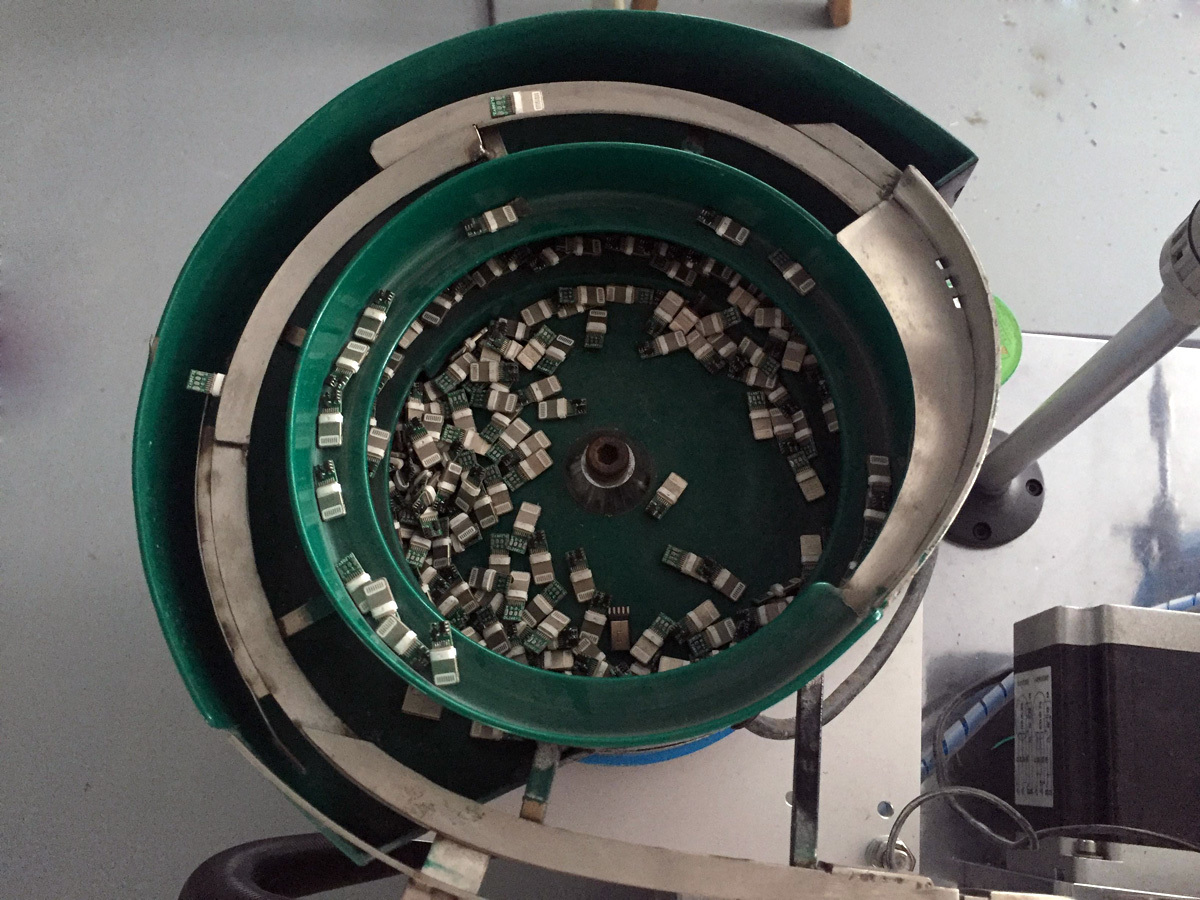

Fully Automatic USB Soldering Machine

Name: Fully Automatic USB Soldering Machine
Brand: SINRAD TECHNOLOGY CO., LTD.
Price: 4000 USD
Availability: InStock

Price 4000 USD ($)/ Set

Get a Price/Quote

MOQ : 1 Set

Fully Automatic USB Soldering Machine Specification

Operating Temperature
Ambient 10C-40C

Operating Voltage
220V AC / 50Hz

Composition
Pb-Sn alloy solder wire, RoHS compliant

Application
Automated soldering of Type-A, Type-B, and Micro-USB connectors

Material
Mild Steel (Body Panel, Internal Mechanism), High-grade PCB, Industrial-grade Soldering Alloy

Diameter
Suitable for USB connectors up to 8 mm

Flux Content
3-4%

Melting Point
183C to 190C

Coating
Powder-coated external body with heat-resistant finishing

Fully Automatic USB Soldering Machine Trade Information

Minimum Order Quantity
1 Set

FOB Port
shenzhen

Supply Ability
200 Sets Per Month

Delivery Time
15 Days

Sample Available
Yes

Sample Policy
Free samples are available

Packaging Details
packed in wooden case

Main Export Market(s)
North America, Africa, Asia

Main Domestic Market
All India

About Fully Automatic USB Soldering Machine

We are an accredited manufacturer and exporter of Full Automatic USB Soldering Machine. This is also known as Automatic USB connector, mini USB, micro USB, DC connector soldering welding machine. It is ideal to be utilized for USB A/F, USB A/M, MINI USB, MICRO USB, DC terminal And varied other equipments more than single welds. Clients can avail the Full Automatic USB Soldering Machine in multiple technical specifications and unmatched features at moderate rates.

Feature:

High efficiency: Wire or power cable port solder along with USB terminal mechanically by machine.
Insert the cable on machine, straighten cables, cutting cable, separate cables, striping cable, dipping tin, and unloading materials.
High Yield: Precise solder tin on USB terminal along with thermostatic control system solder by machine that ensures high yield.
Reduce production cost: From 800pcs to 1300pcs per hour signal side. Minimizes much labor cost.

Technical Index

Into the main pressure: 5-7 kg/cM2
Motor Power: Single-phase 220V,0.2 Kw
Control Power: Single -phase, 0.15 K
Total Wattage: 0.5 Kw
Drive Mode: 4-8Kg Pneumatic
Temperature Control Mode: Thermostatic
Welding Angle<90
Inner Stripping Length: 2-20mm
Working Voltage: 220V
Working Efficiency: 800-1300 Pcs/H
Machine Dimensions(LxWxH): 0.96x0.62x1.1M
Machine Weight: 180 Kg

Advanced Automation for High-Volume Soldering

Equipped with a fully automatic system, this USB soldering machine maximizes throughput and consistently high-quality joints. The industrial-grade PLC controller and user-friendly touch screen streamline the entire soldering workflow, reducing manual intervention and promoting safety and reliability.

Precision Engineering for Multiple USB Types

Engineered to handle a range of USB connectors, including Type-A, Type-B, Micro-USB, and Type C, this machine delivers accuracy with a wire cutting precision of 0.2 mm. It supports USB diameters up to 8 mm, making it compatible with most modern connectivity standards in electronics manufacturing.

Compliant, Efficient, and Durable Construction

Built with mild steel and finished with powder-coated heat-resistant surfaces, the machine is RoHS compliant and uses a Pb-Sn solder alloy with optimal flux and melting characteristics, ensuring efficient, safe, and environmentally responsible operations for continuous industrial use.

FAQs of Fully Automatic USB Soldering Machine:

Q: How does the fully automatic USB soldering machine operate?

A: The machine works using PLC control with a touch screen interface, automating the processes of wire cutting, solder feeding, connector positioning, and soldering. The operator sets up the required parameters, and the system manages each stage for efficient, repeatable production.

Q: What types of USB connectors can this machine solder?

A: It is suitable for soldering a broad range of USB connectors, including USB 2.0, USB 3.0, Type C, and Micro USB. The machine is adaptable for Type-A, Type-B, and Micro-USB connectors with diameters up to 8 mm.

Q: When is this machine most beneficial for use?

A: This soldering machine is ideal for environments requiring high-volume, consistent, and precise soldering, such as in assembly lines or mass production settings for electronics manufacturing, where efficiency and reliability are critical.

Q: Where can this machine be installed and operated?

A: Designed for industrial settings, the machine requires a single-phase 220V AC power supply and should be operated in ambient temperatures ranging from 10C to 40C. It is suitable for factories, workshops, and manufacturing plants handling electronic assemblies.

Q: What benefits does the integrated air cooling system provide?

A: The integrated air cooling system helps maintain optimal operating temperatures, preventing overheating during prolonged use and ensuring stable performance and longer machine life.

Q: How precise is the wire cutting and soldering process?

A: The machine features a wire cutting precision of 0.2 mm, ensuring accurate soldering for small connectors and consistent connection quality with minimal error.

Q: What materials are used in the machines construction and soldering process?

A: The body and internal mechanisms are made from durable mild steel with a powder-coated, heat-resistant finish. It uses industrial-grade solder alloy, specifically Pb-Sn with 3-4% flux content, that melts between 183C and 190C, compliant with RoHS standards.
