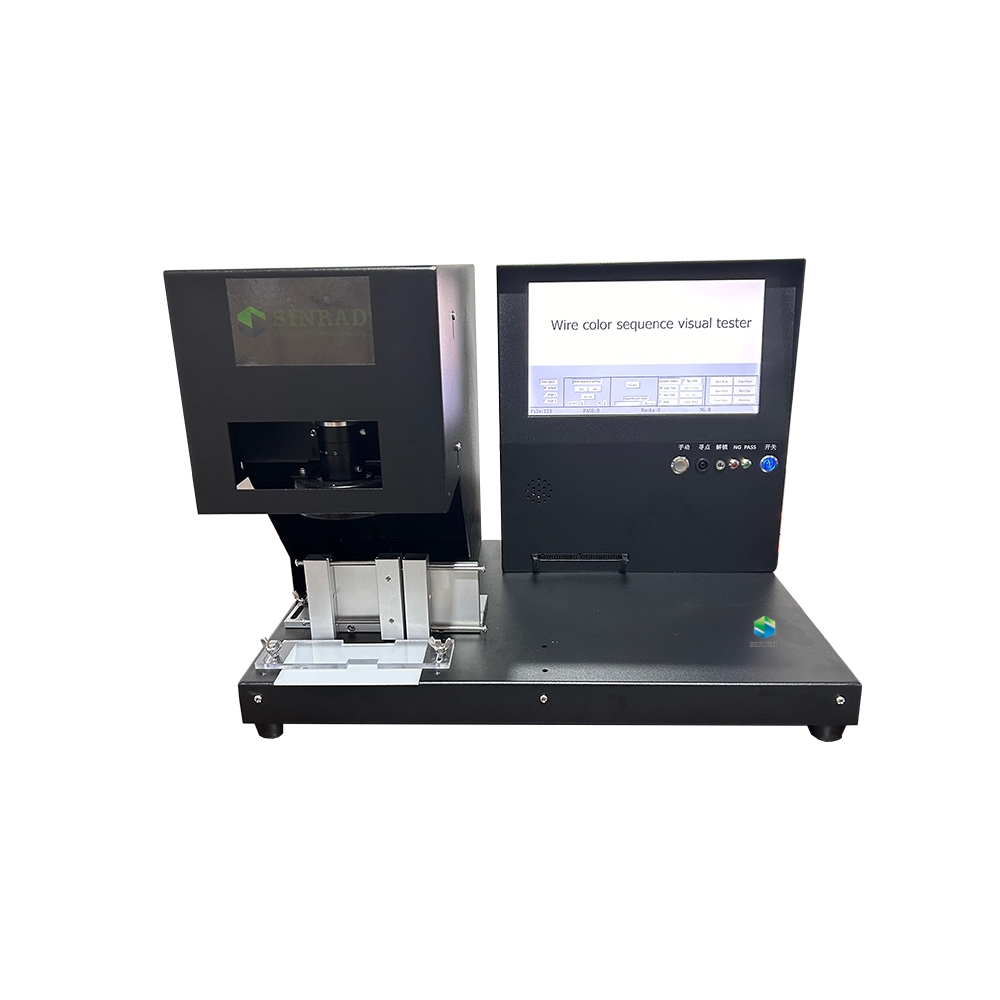

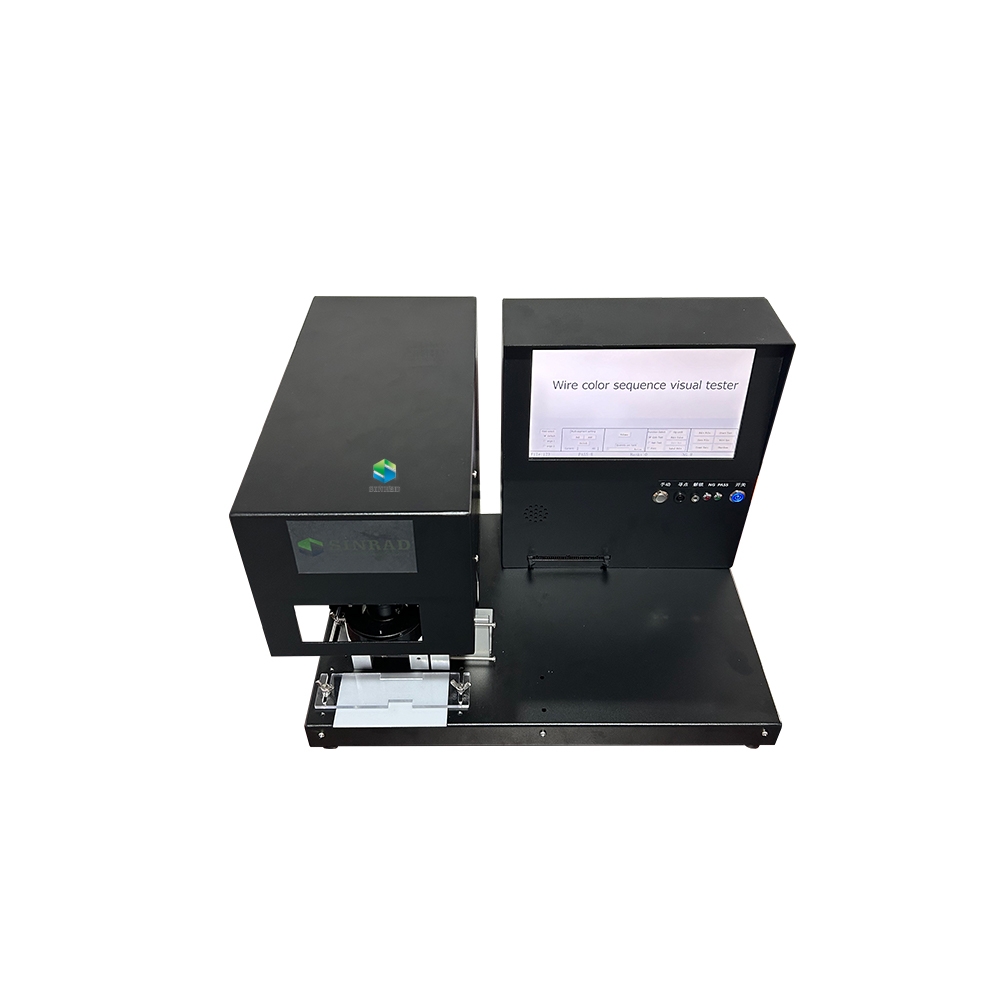

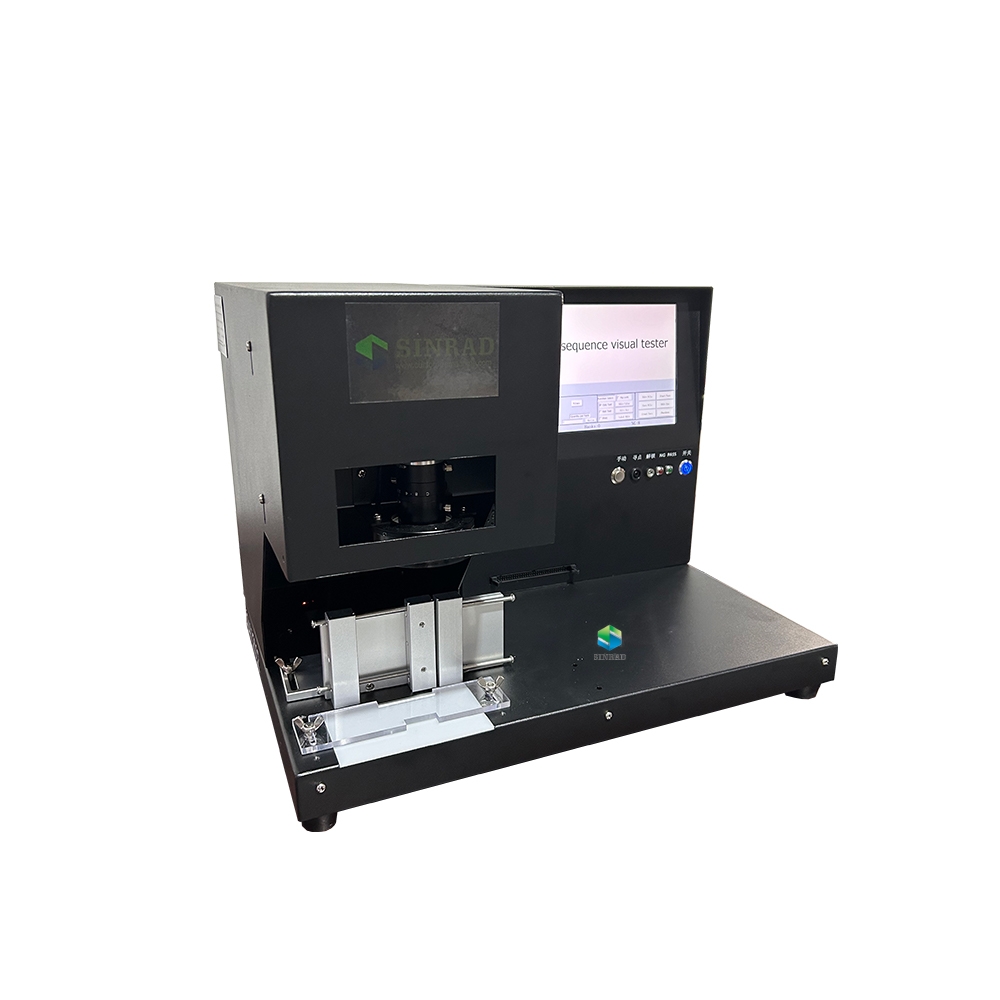

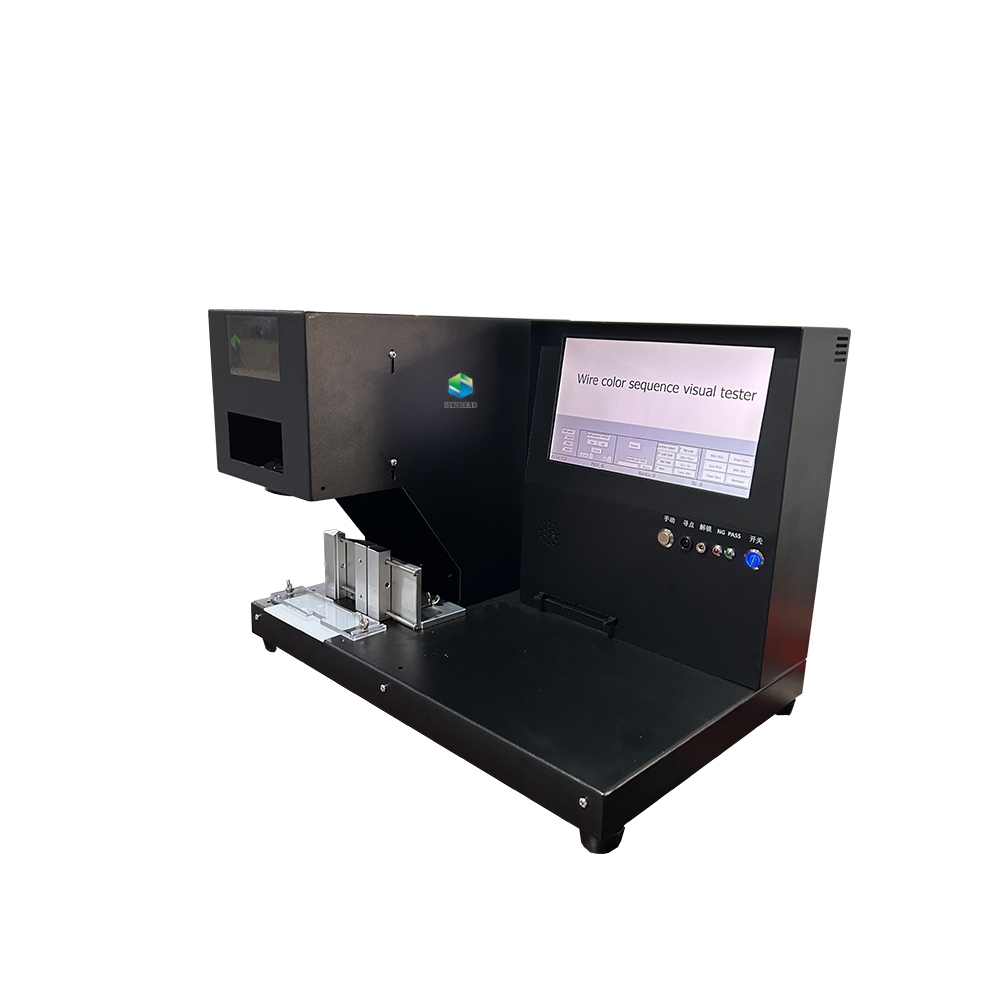

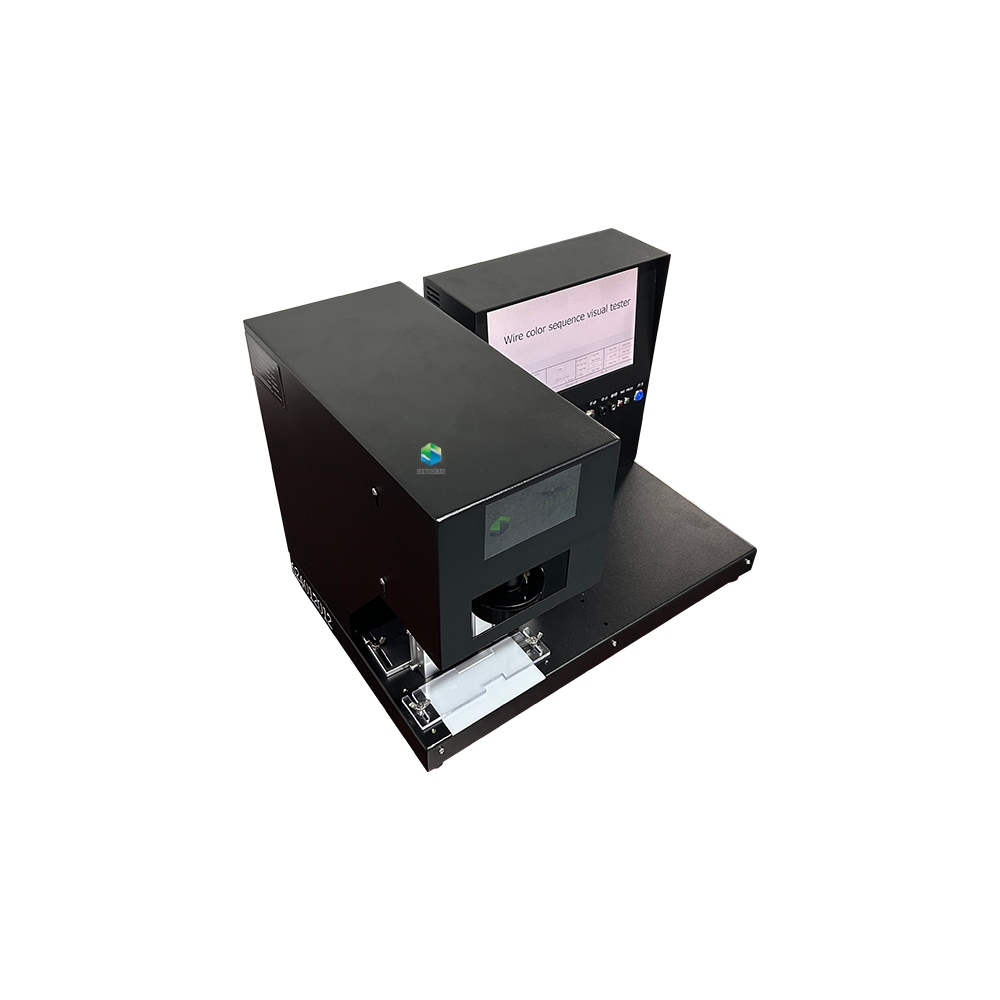

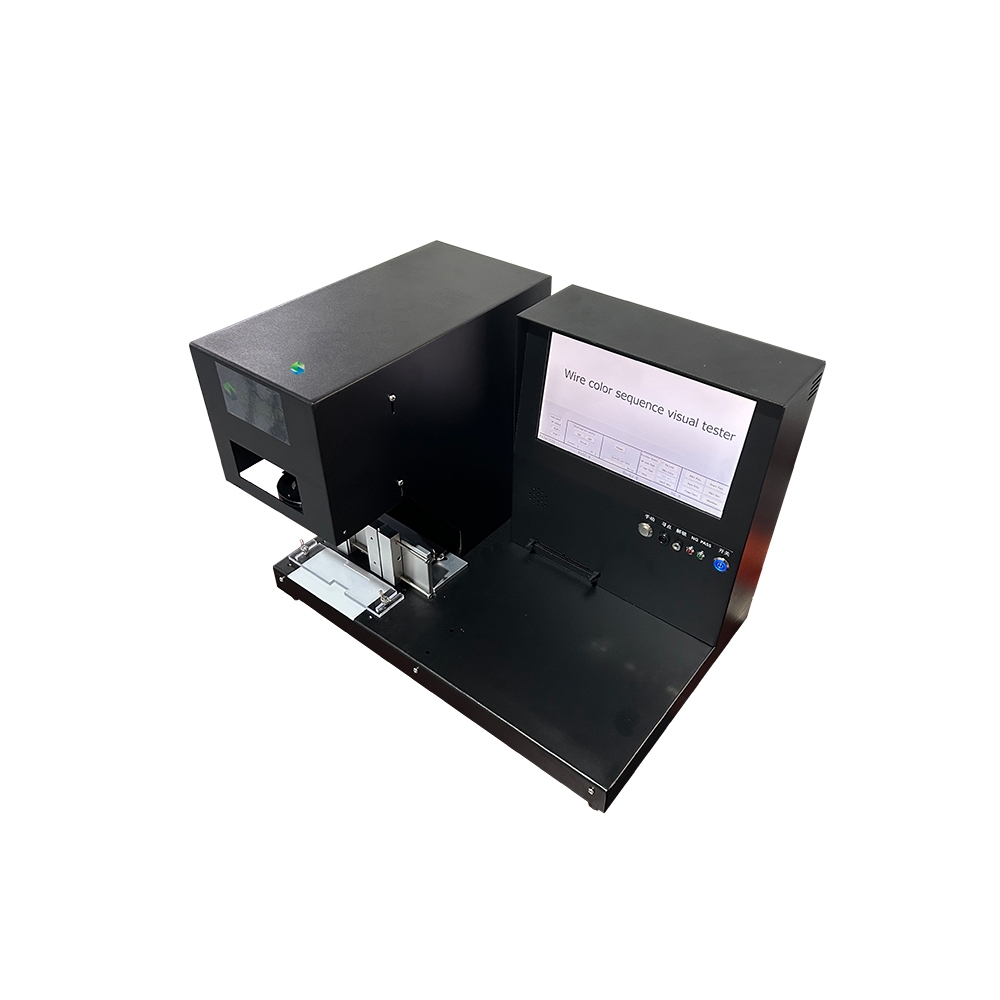

Wire Color Sequence Continuity Tester

3835.0 USD ($)/Piece

Get a Price/Quote

Product Details:

Control System PC
Warranty 1-year
Frequency 50/60 Hertz (HZ)
Power 600 Watt (w)
Weight 30 Kilograms (kg)
Voltage 220 Volt (v)
Phase 3-phase
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Wire Color Sequence Continuity Tester Price And Quantity

Price 3835.0 USD ($)/Piece
Minimum Order Quantity 1 Piece

Wire Color Sequence Continuity Tester Product Specifications

Power Consumption 220 Volt (V)
Power 600 Watt (w)
Weight 30 Kilograms (kg)
Frequency 50/60 Hertz (HZ)
Phase 3-phase
Application Tesitng
Warranty 1-year
Automatic Grade Automatic
Control System PC
Voltage 220 Volt (v)

Product Description

1. The instrument is flexible and versatile:

1)Multi-purpose (line sequence/line sequence + conduction + dot + label printing/line sequence + insulation/multi-terminal disorder)

2)Man-machine interface, simple setup, easy to learn and easy to operate, save files, can be directly called

3)Hair-trigger, fast test response (test time < 0.01 seconds)

4)Automatic recognition of front and back with the same color, free placement of front and back, multi-end disorder test

5)Conduction detects 64 point breaks, misalignments, instantaneous breaks, and point measurements

6)Test result voice broadcast, NG lock, test data storage and management, data can be checked and called

7)According to customer needs, barcode label online printing system can be added, and customer MES system can be connected

8)According to customer's requirements, we can customize personalized vision tester and fixture for customers

2. The instrument is highly intelligent:

1) Human-machine interface, easy to set up, easy to learn and easy to operate, can remotely guide customers to debug.

2) The same color and front and back sides are automatically identified during debugging, and the front and back sides of the housing can be placed at will during testing.

3) Editable files & test parameters, which can be called directly later, automatically determine PASS or NG, and automatically lock the machine when NG is found.

4) It can effectively filter the printing on the wire body, and can effectively detect the in-place insertion of special products.

5) The test results are displayed on the screen, indicator lights and voice prompts, and the test data can be stored and exported for easy access and analysis.

6) The quantity of each good product can be set, and it will automatically alarm after the number is reached, saving manual weighing.

3. Diversification of test products , wide range:

1) Can test single-ended, double-ended, double-row holes and multi-ended, multi-segment non-sequential wiring harness products.(Other model for double row)

2) Can test single wire, flat wire, shielded wire, silicone wire, CABLE and other types of products.

3) Appearance defect detection of electronic products (such as: PCB solder joints).
