Cross section analyser

5580.0 USD ($)/Piece

Get a Price/Quote

Product Details:

Power 600 Watt (w)
Frequency 50/60 Hertz (HZ)
Voltage 220 Volt (v)
Speed Range 1400 rpm (adjustable)
Warranty 1-year
Color Black
Application Testing cable cross section
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Cross section analyser Price And Quantity

Price 5580.0 USD ($)/Piece
Minimum Order Quantity 1 Piece

Cross section analyser Product Specifications

Voltage 220 Volt (v)
Speed Range 1400 rpm (adjustable)
Automatic Grade Automatic, Semi Automatic
Features Testing cable cross section
Machine Speed 2800RPM mm/s
Power 600 Watt (w)
Frequency 50/60 Hertz (HZ)
Phase 3-phase
Warranty 1-year
Color Black
Weight 60 Kilograms (kg)
Application Testing cable cross section
Control System PC

Product Description

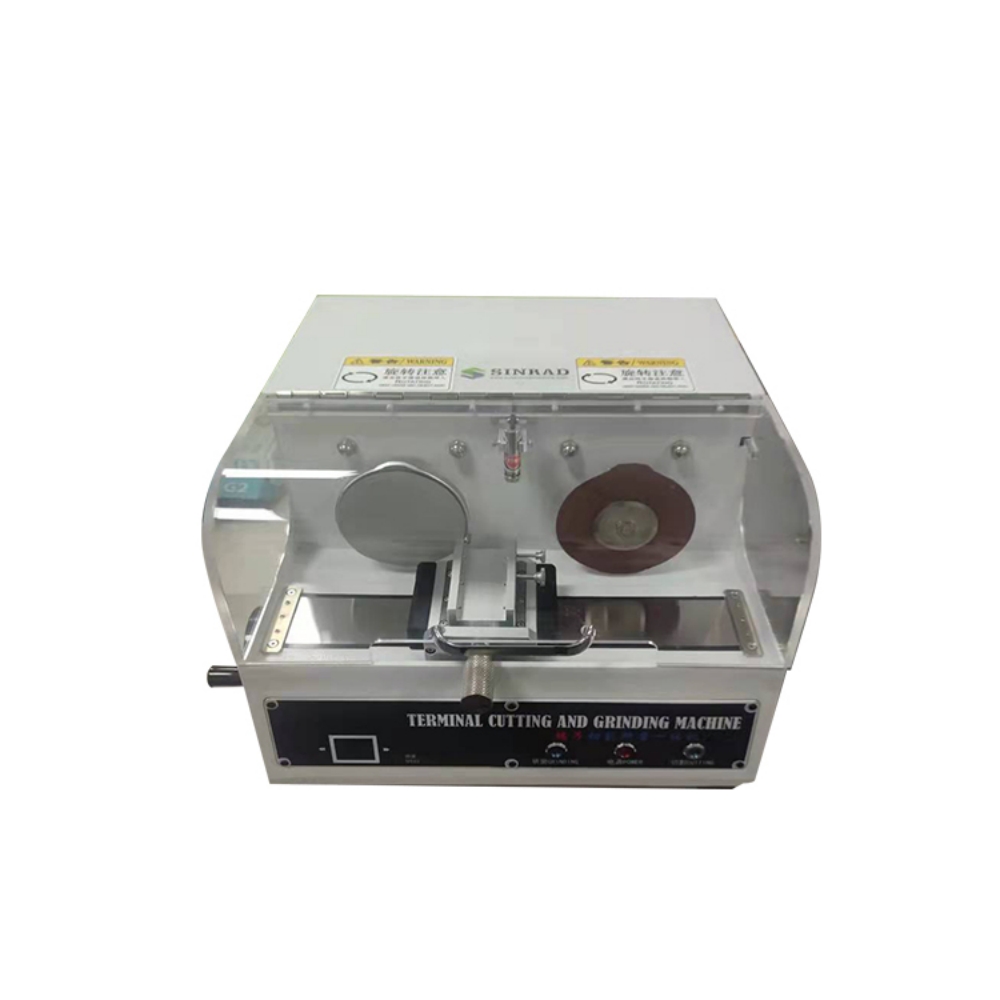

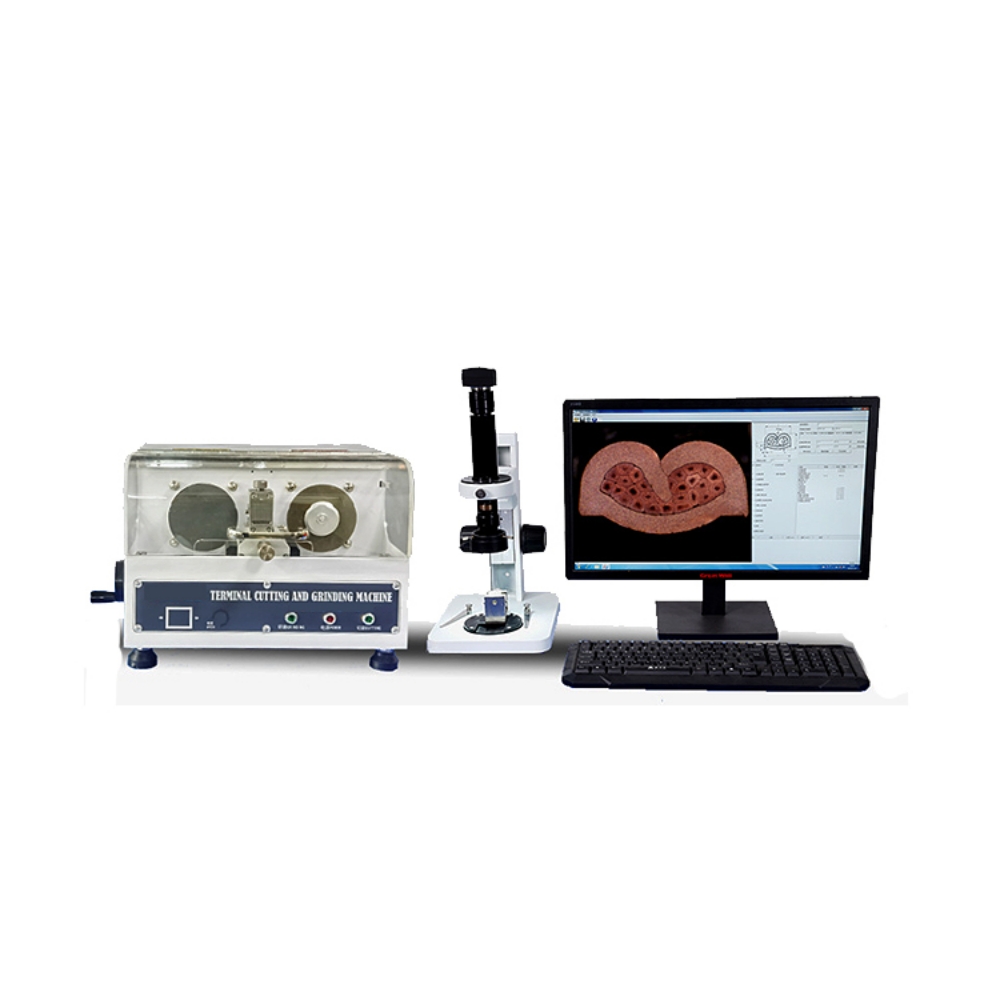

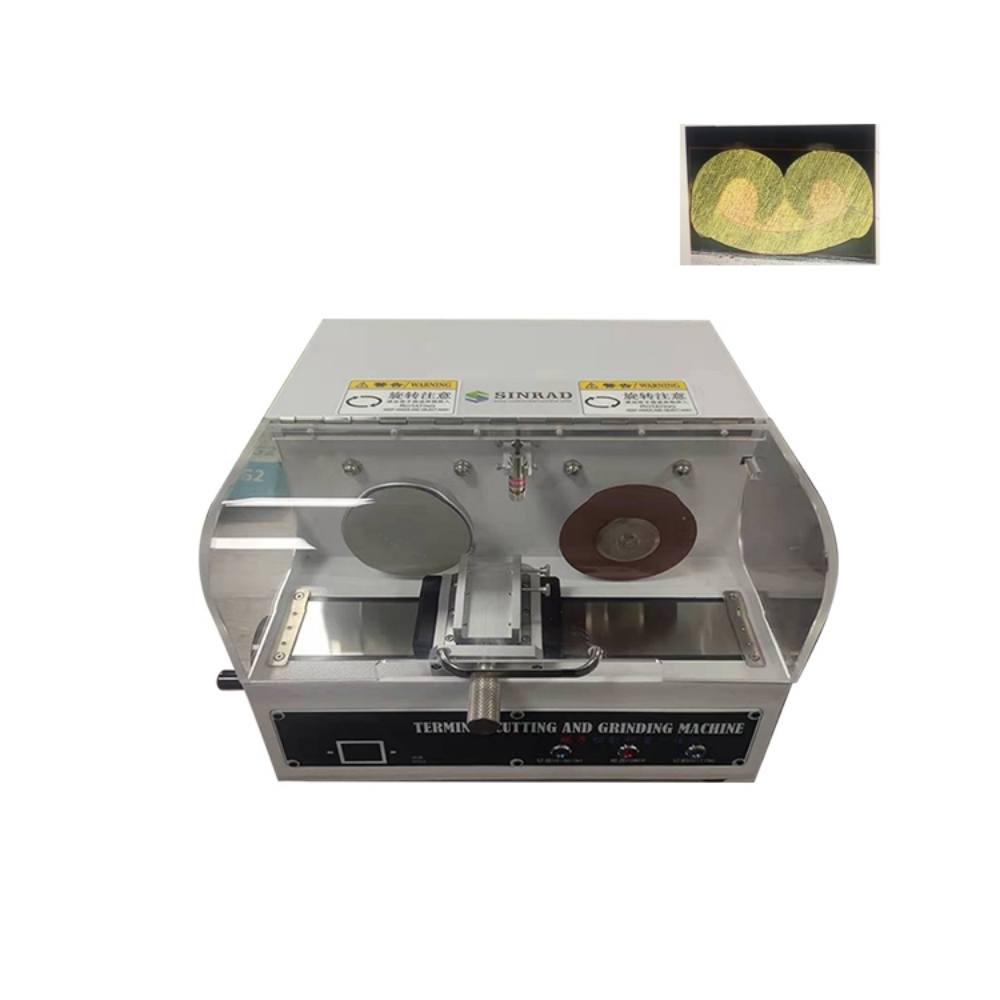

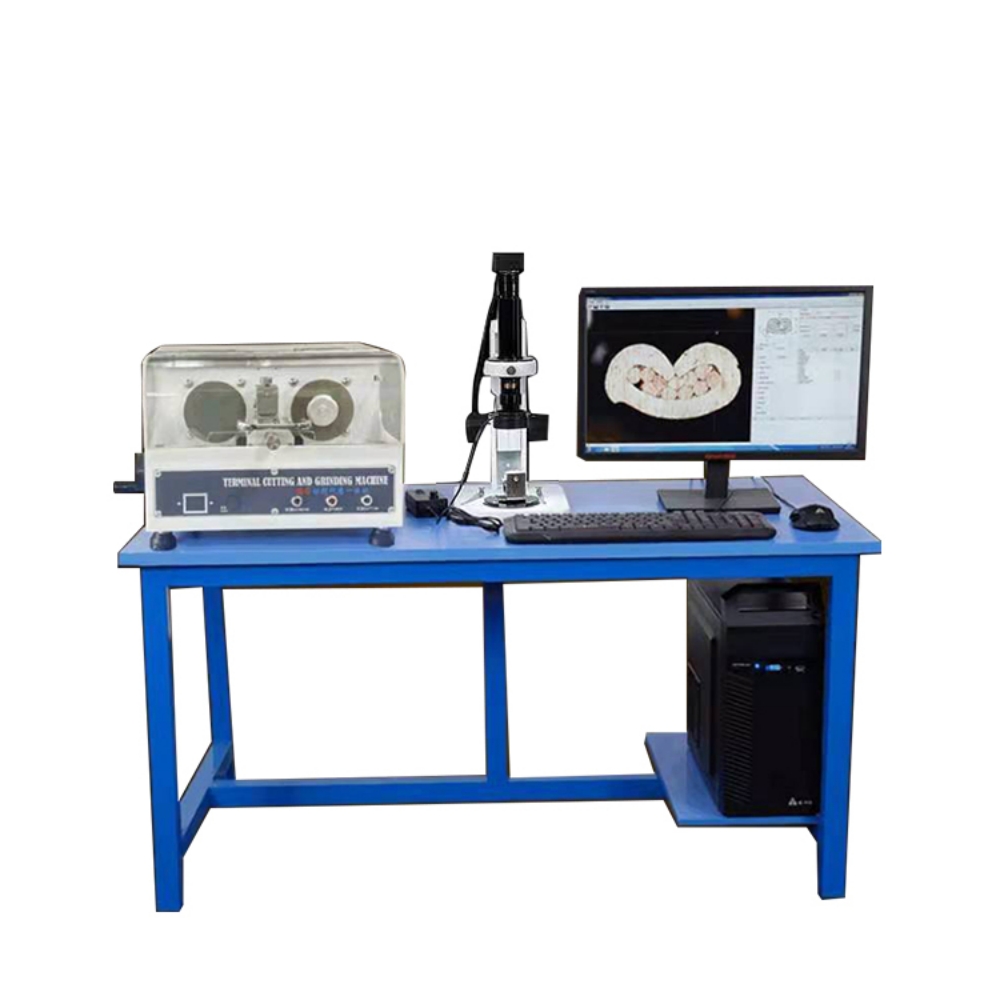

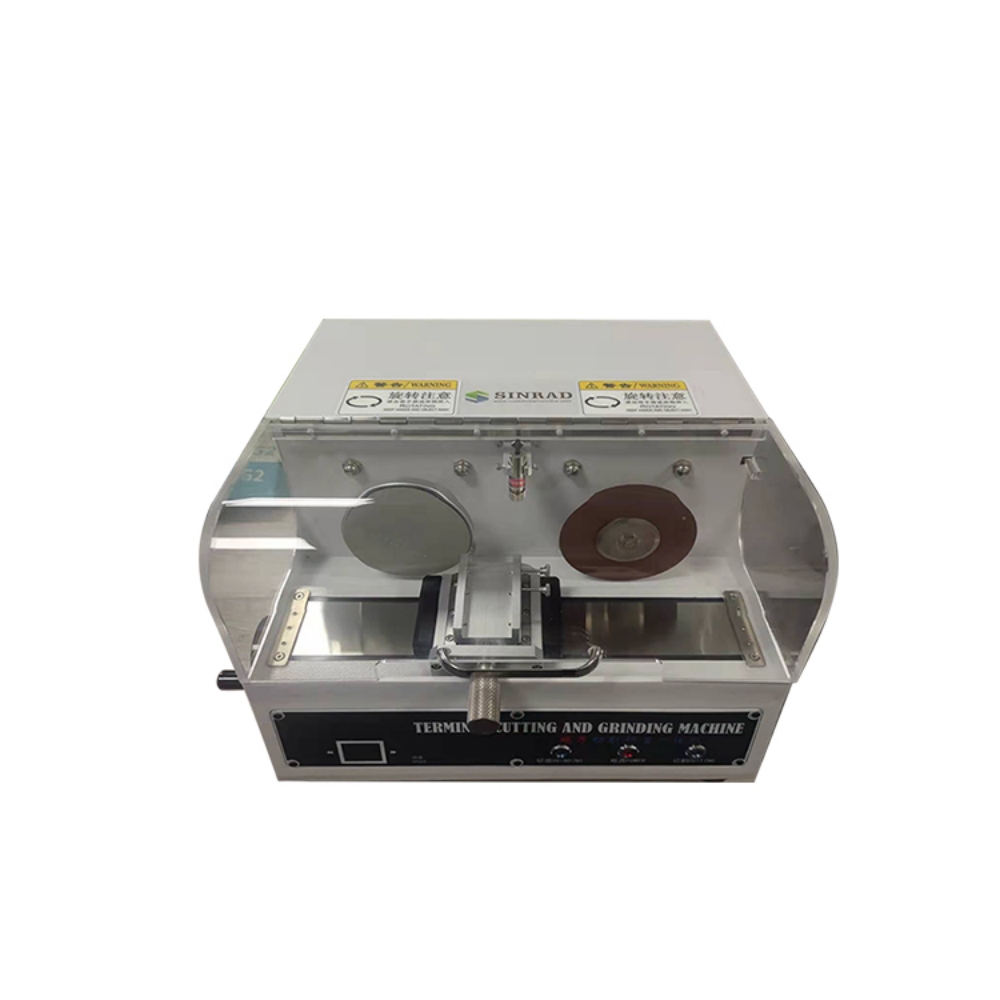

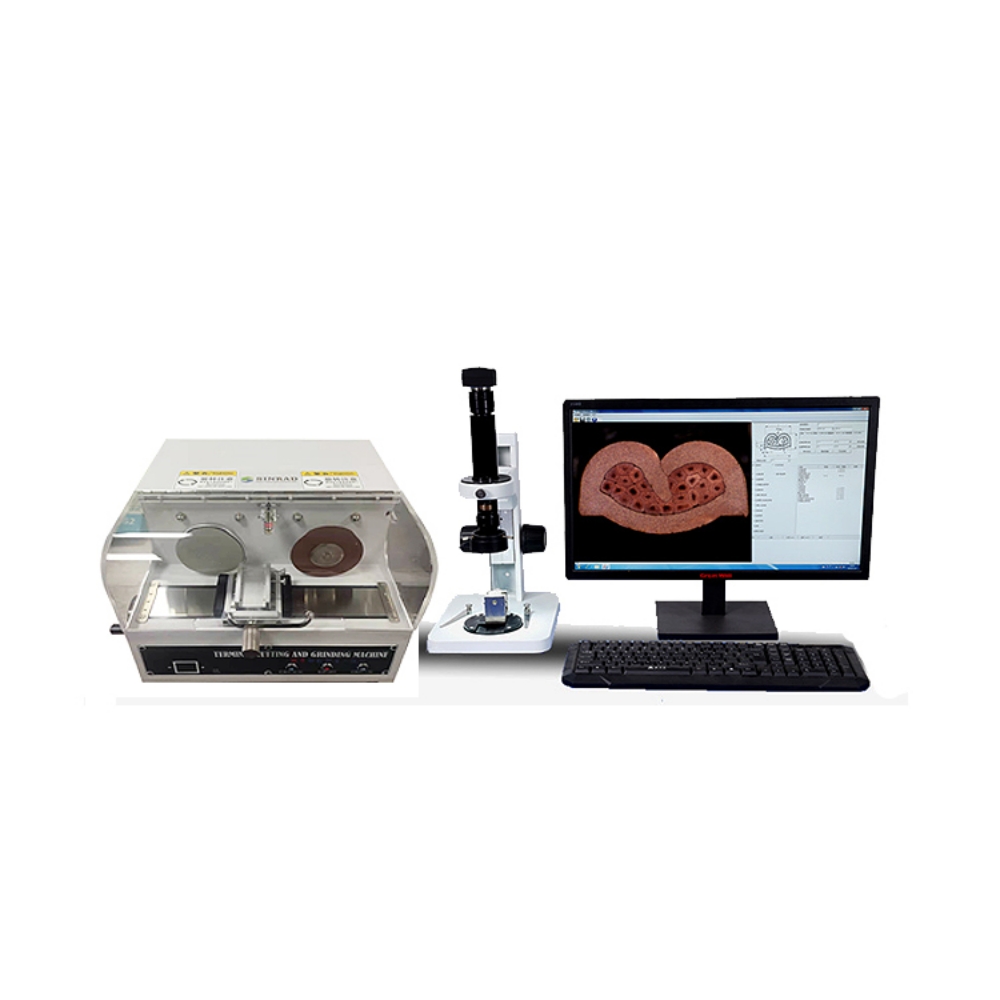

Terminal cross-section analyzer integrated terminal cutting and grinding table: After the terminals are clamped by a dedicated harness clamp, the cutting disc and the

grinding disc are independently controlled, and the speed can be easily controlled. (Because different AWG terminals need different speeds to cut

More perfect cutting, but the grinding process should use the corresponding speed according to the size of the terminal. Our all-in-one machine is independently controlled

by dual-control frequency conversion technology, with a speed range of 0~4500 rpm, using German dual motors). Cutting speed is required. In addition, when grinding and

polishing the terminal section, it is necessary to control the speed according to the material and size of the terminal. . During grinding and polishing, a rail structure with

scales is designed that can be fine-tuned up and down, which can accurately control the height of the terminals for customers. The time required for terminal cutting,

grinding and polishing is 2 to 3 minutes. Very fine lines exceeding AWG38 can be displayed clearly. Use newly developed cross-section assessment

It can measure CH and CW and calculate the cross-sectional area instantly. The measurement accuracy at the maximum magnification is 3m.

It only takes 2 minutes to complete the sample making process for wire harness terminal inspection!!

Software funtion

Compression ratio, number of harnesses, crimp height, crimp width, cross-sectional area, support height, support angle, burr width, burr height, etc.
