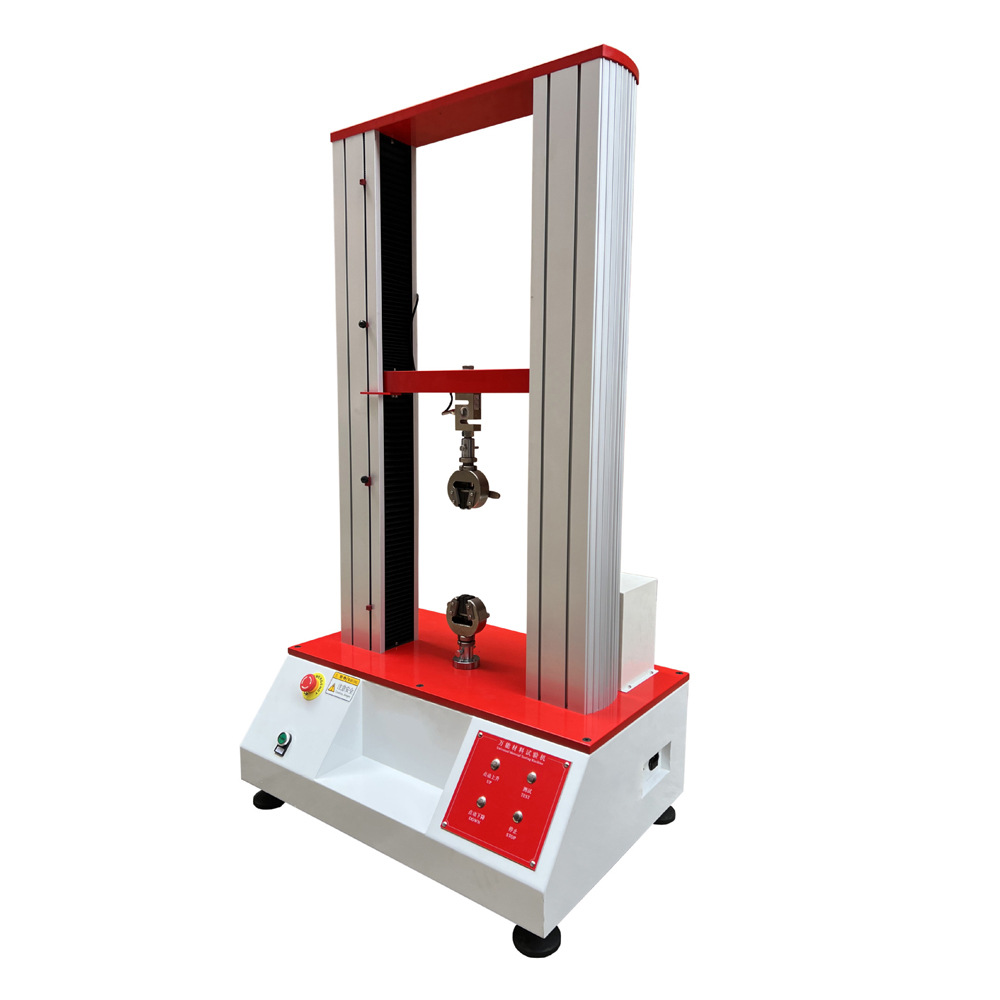

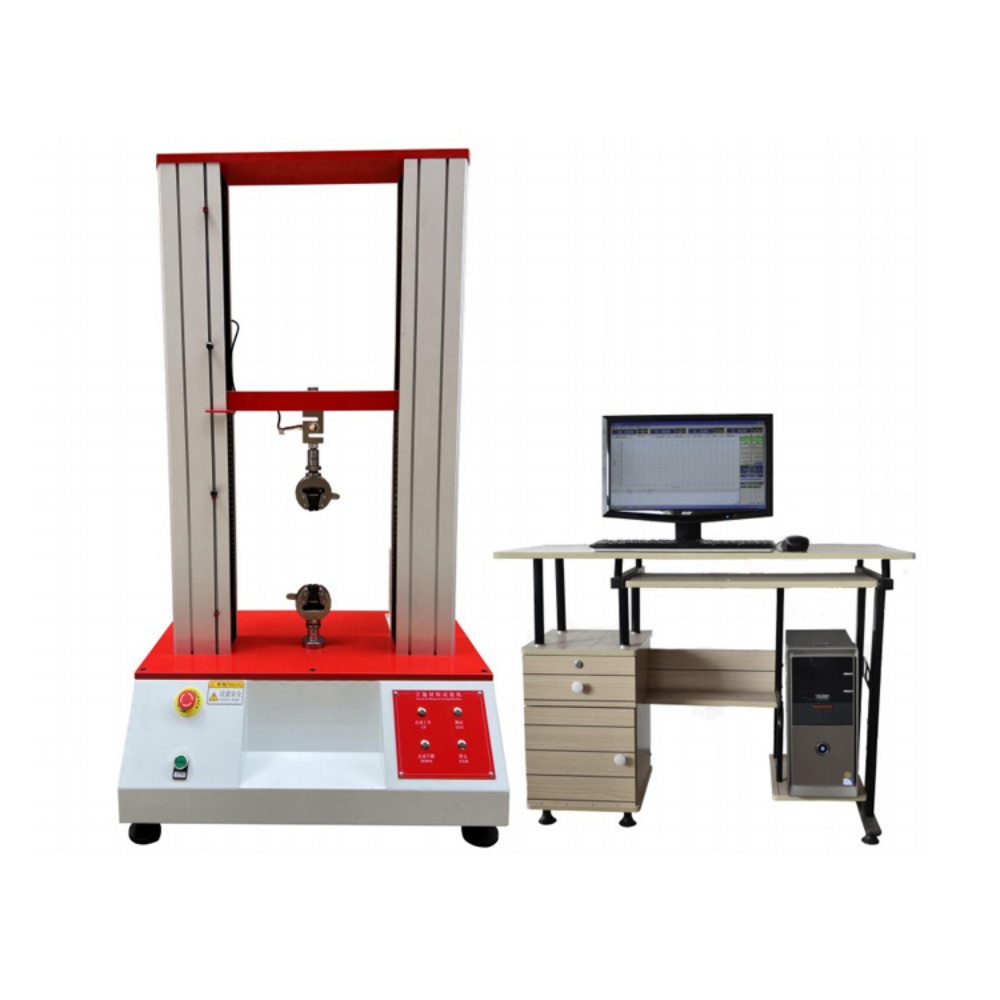

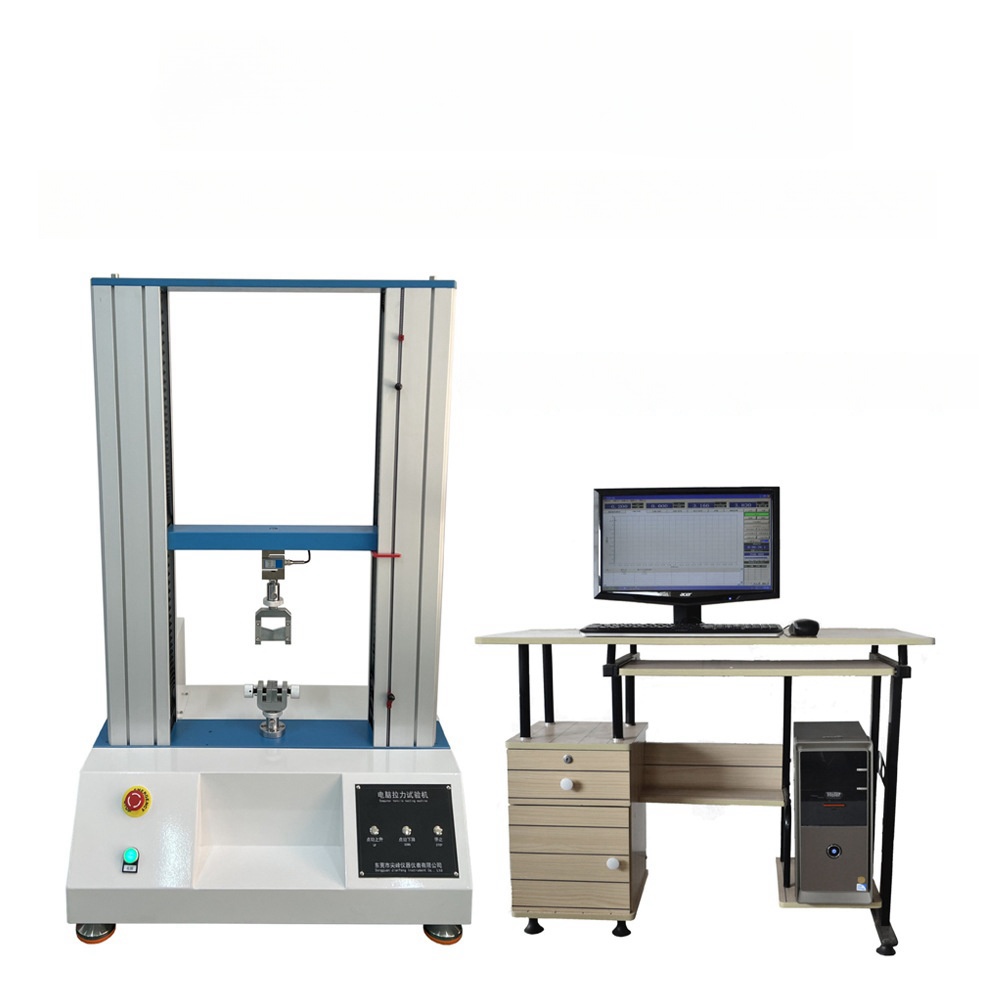

1kN 2kN 5kN 10kN Universal Material Constant Pull Force Tensile Testing Machine Computer Control Start and Analysis Machine

1kN 2kN 5kN 10kN Universal Material Constant Pull Force Tensile Testing Machine Computer Control Start and Analysis Machine

3198.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Power Consumption 800 Watt (W)
Product Type Testing machine
Frequency 50/60 Hertz (HZ)
Control System PC
Application Testing wire harness
Weight 180 Kilograms (kg)
Warranty 1-year
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

1kN 2kN 5kN 10kN Universal Material Constant Pull Force Tensile Testing Machine Computer Control Start and Analysis Machine Price And Quantity

Price 3198.0 USD ($)/Unit
Minimum Order Quantity 1 Unit

1kN 2kN 5kN 10kN Universal Material Constant Pull Force Tensile Testing Machine Computer Control Start and Analysis Machine Product Specifications

Automatic Grade Manual , Automatic, Semi Automatic
Power Consumption 800 Watt (W)
Warranty 1-year
Phase 3-phase
Application Testing wire harness
Weight 180 Kilograms (kg)
Control System PC
Product Type Testing machine
Frequency 50/60 Hertz (HZ)
Voltage 220 Volt (v)

Product Description

This machine adopts computer control and is widely used in the mechanical performance test of rubber, plastic, wire and cable, textiles, waterproof materials, non-woven fabrics and

other non-metallic materials and metal wires, metal foils, metal plates and metal rods. It can also be used with special fixtures. It is suitable for all kinds of finished product tensile,

compression, peeling, shearing, tearing, bending (folding) tests.

Multiple data can be printed, and graphical output comparisons can be made according to different data, with high control accuracy and easy operation; modular design, complete

variety of accessory accessories, and flexible matching.

This machine is mainly suitable for testing the mechanical properties of metal such as tensile, compression, bending, etc. It can also realize multiple dead-cycle tests such as constant

stress, constant strain, creep, relaxation, axial, and radial. The tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation, elastic modulus and

other parameters can be automatically calculated according to GB, JIS, ASTM, DIN and other standards.

Control software introduction

Software operating system language: English.

Control method:

Various control methods such as computer software setting speed, setting load breaking (rupture), running time, etc.

Available test data:

Maximum strength, minimum strength, breaking value, upper and lower yield strength, tensile strength, compressive strength, elastic modulus, elongation, maximum, minimum,

average value of peeling interval, etc. (Customers need to select before ordering) It has multiple protections such as overload, overcurrent, overvoltage, undervoltage, overspeed, and

stroke.

The data results are derived from the crystal report format currently accepted by the national standard.
