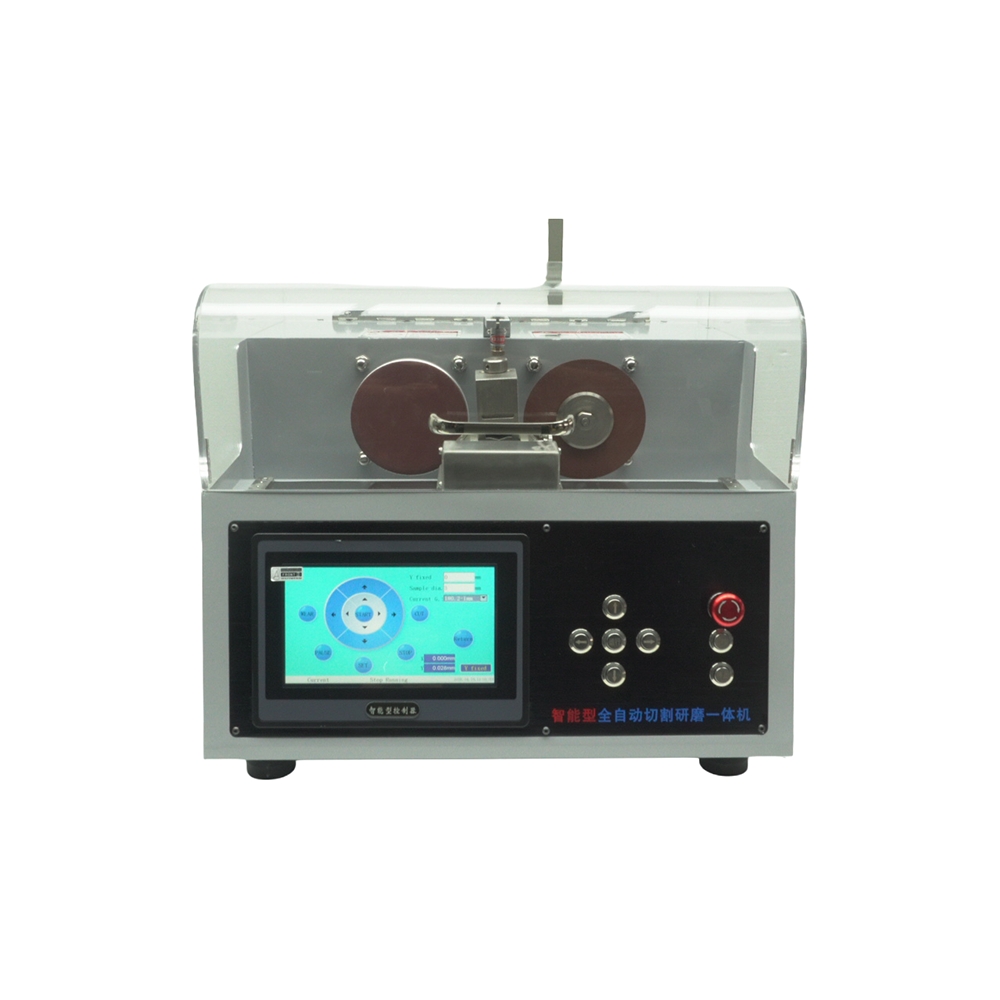

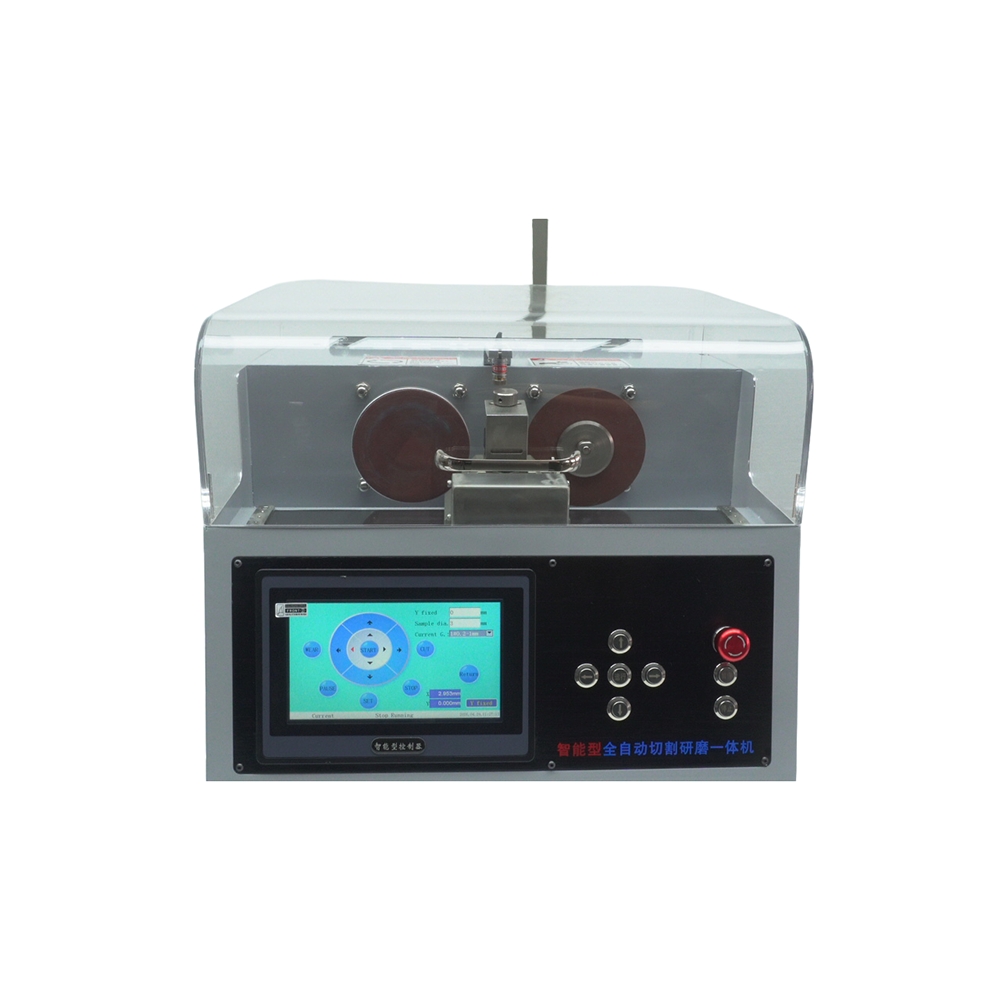

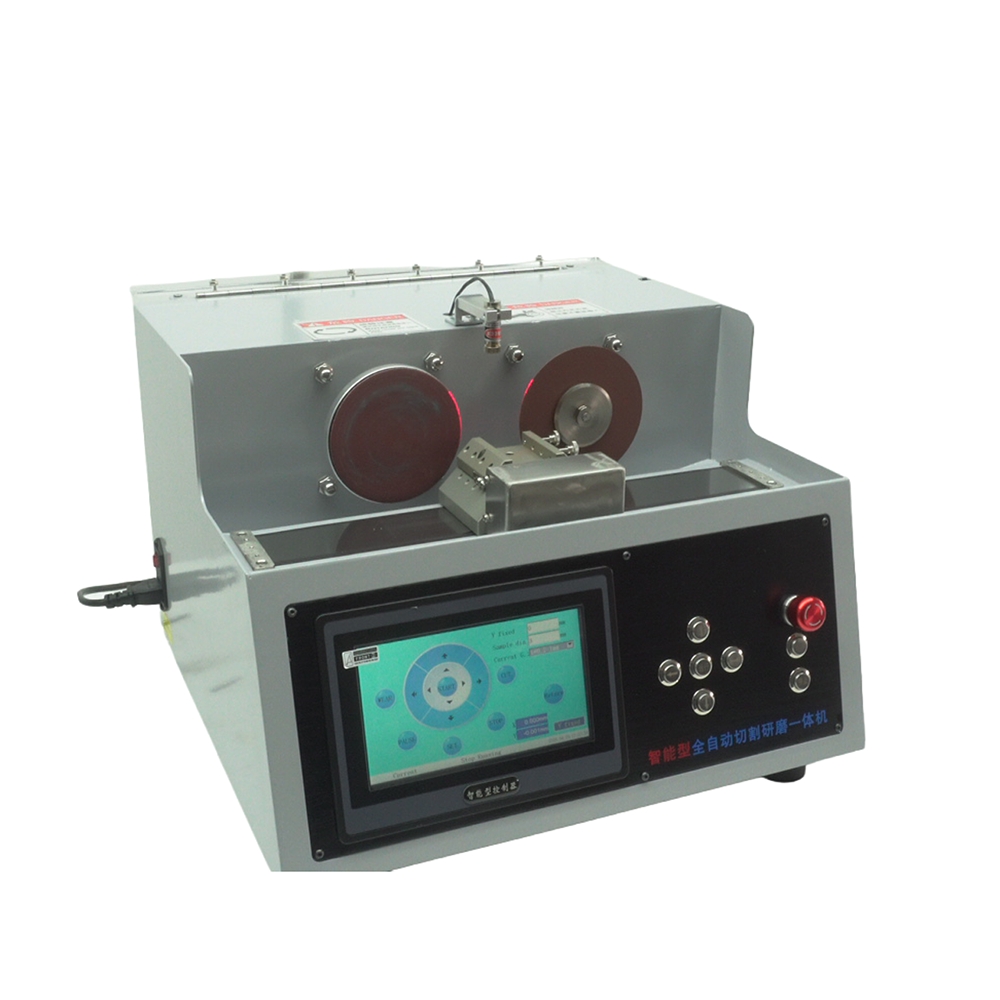

Semi-auto cross section analyser

3288.0 USD ($)/Piece

Get a Price/Quote

Product Details:

Voltage 220 Volt (v)
Color white
Dimension (L*W*H) 500*350*350 Millimeter (mm)
Warranty 1 year
Speed Range 2800RPM
Machine Speed 2800RPM mm/s
Control System computer/PLC
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Semi-auto cross section analyser Price And Quantity

Minimum Order Quantity 1 Piece
Price 3288.0 USD ($)/Piece

Semi-auto cross section analyser Product Specifications

Machine Speed 2800RPM mm/s
Speed Range 2800RPM
Application Cross section analyze
Control System computer/PLC
Color white
Material metal alloy
Voltage 220 Volt (v)
Warranty 1 year
Dimension (L*W*H) 500*350*350 Millimeter (mm)
Weight 30 Kilograms (kg)
Features Cross section analyze
Power 600 Watt (w)
Frequency 50/60 Hertz (HZ)
Automatic Grade Semi Automatic

Product Description

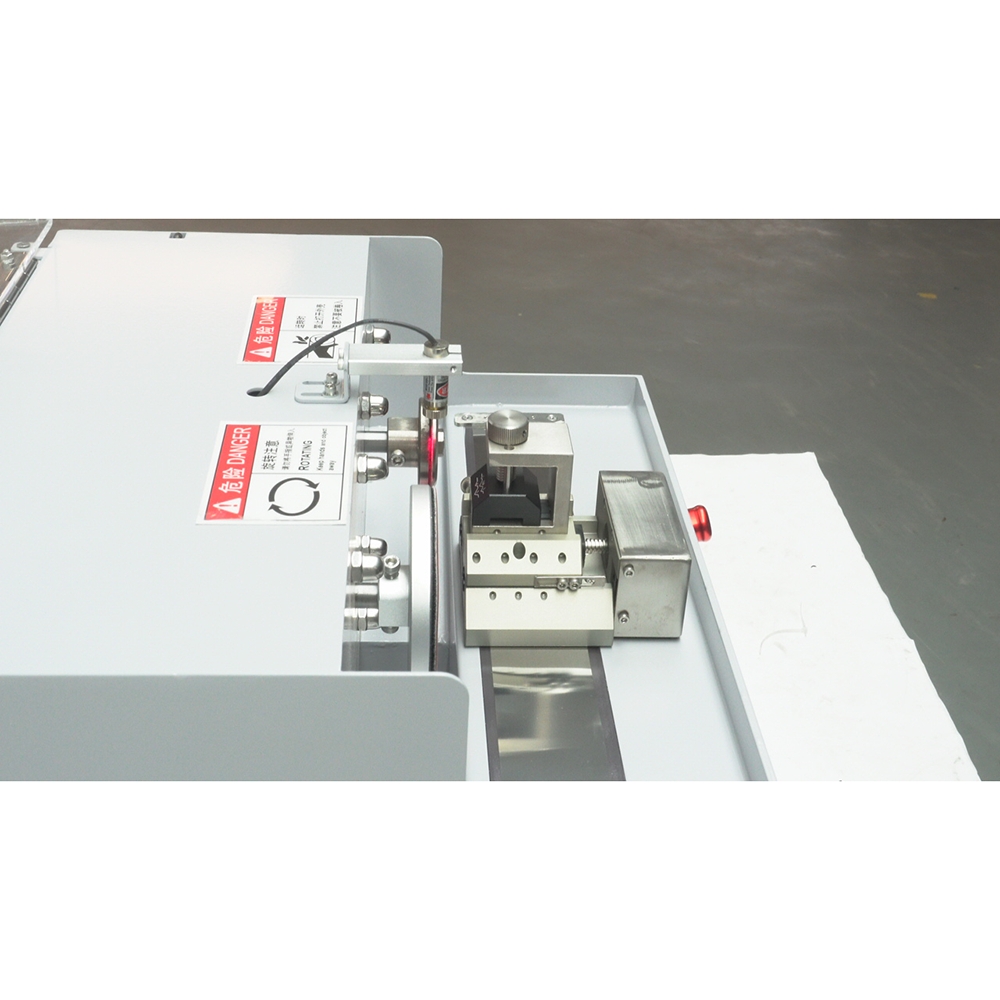

1. Utilizes linear guides to ensure installation precision.

2. Features a horizontally mounted motor to minimize rotational runout.

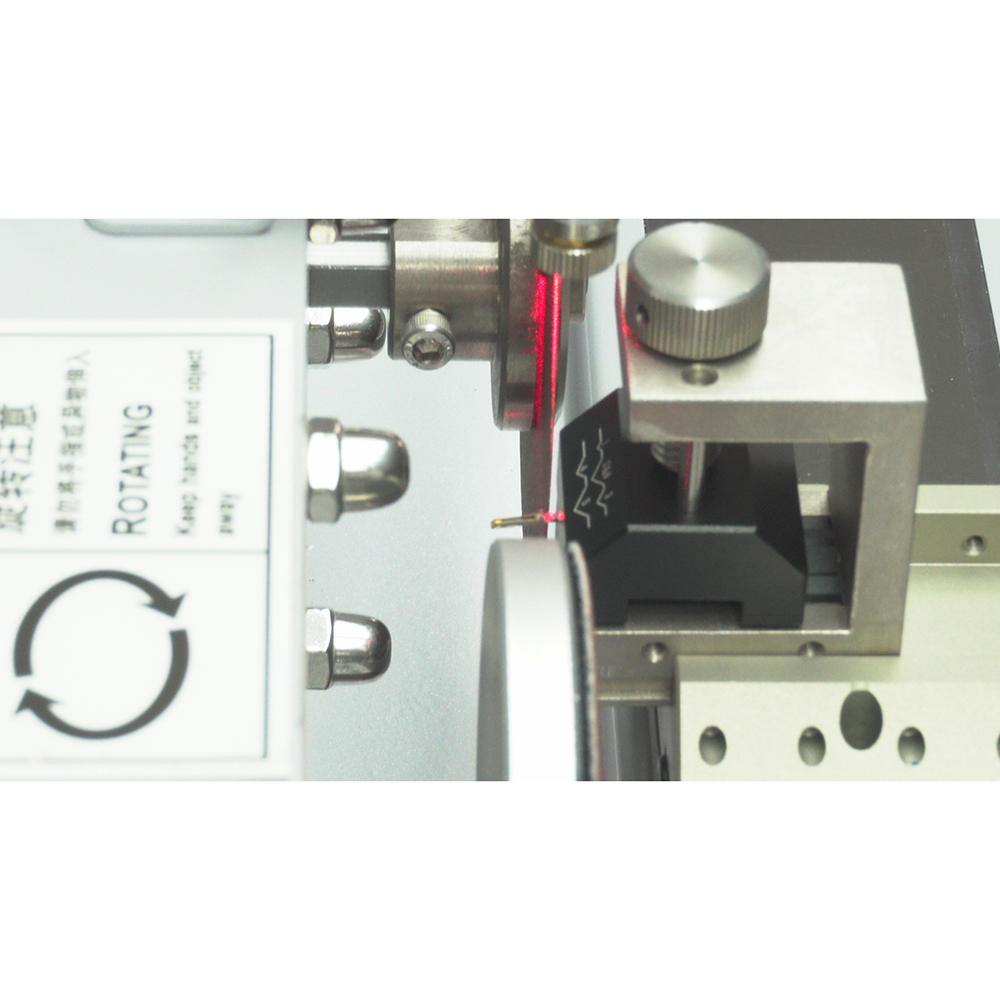

3. Employs laser-infrared alignment to ensure rapid positioning at the cutting point.

4. Offers an optional movable XY work platform with a 360-degree rotary stage, facilitating convenient sampling of terminal cross-sections.

5. Includes an integrated drainage system to simplify machine cleaning.

6. Features a front-mounted fixture design for easy installation and adjustment.

7. Equipped with a trigger-activated switch to ensure operator safety.

8. Uses Velcro-backed sandpaper for quick and easy replacement.

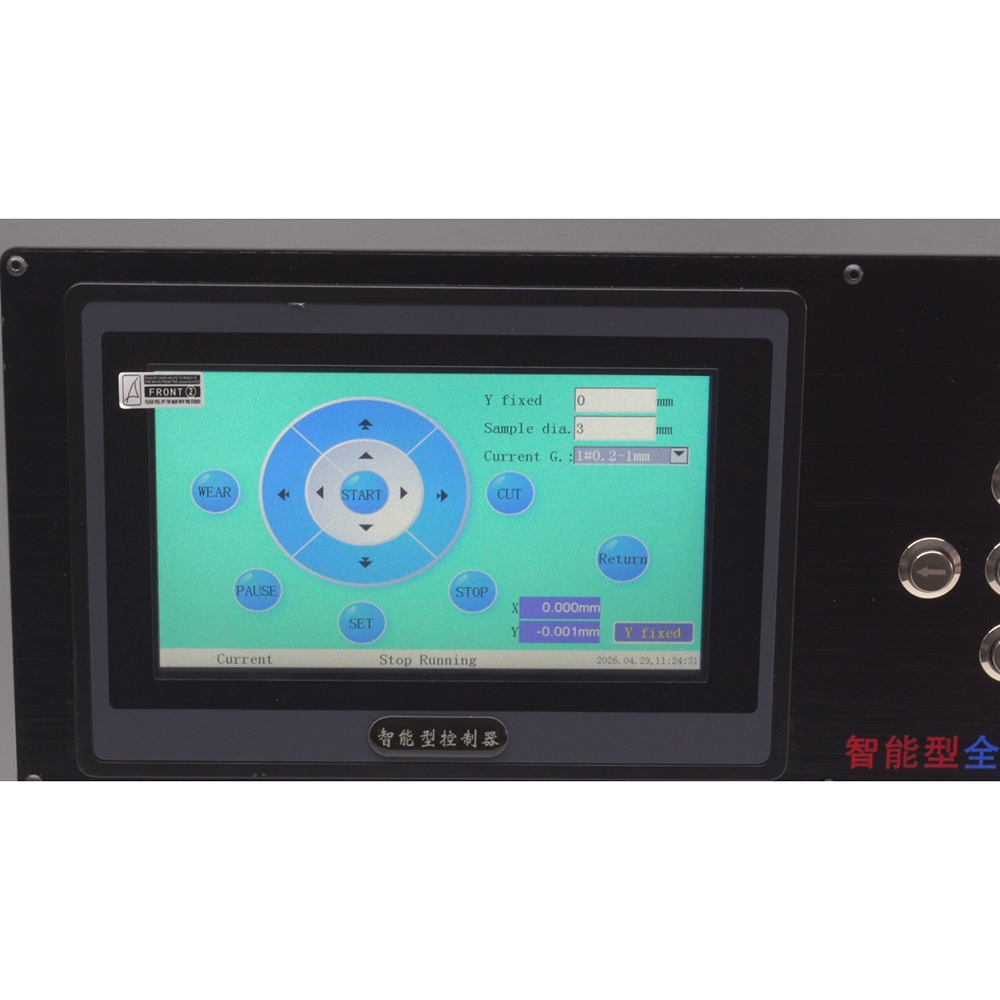

9. Features a 7-inch touch-screen interface with intelligent cutting software.

10. Supports the storage of up to 30 cutting programs.

11. Includes supplementary button controls to extend the operational lifespan of the interface.
